For property owners, facility managers, contractors, businesses, medical facilities, schools, and commercial properties, understanding these requirements can help avoid costly corrections later.
This guide explains how the 60-inch measurement works, what the sign must display, where it can be mounted, how pavement markings support the sign, which federal exceptions may apply, and what to expect during installation.
Key Takeaways
- The bottom edge of an ADA parking sign must be at least 60 inches above the ground.
- Every accessible parking sign must display the International Symbol of Accessibility.
- Van-accessible spaces also require the words "van accessible."
- Pavement markings can support identification but do not replace the required above-ground sign.
- Federal exceptions are limited and should be confirmed for the specific property.

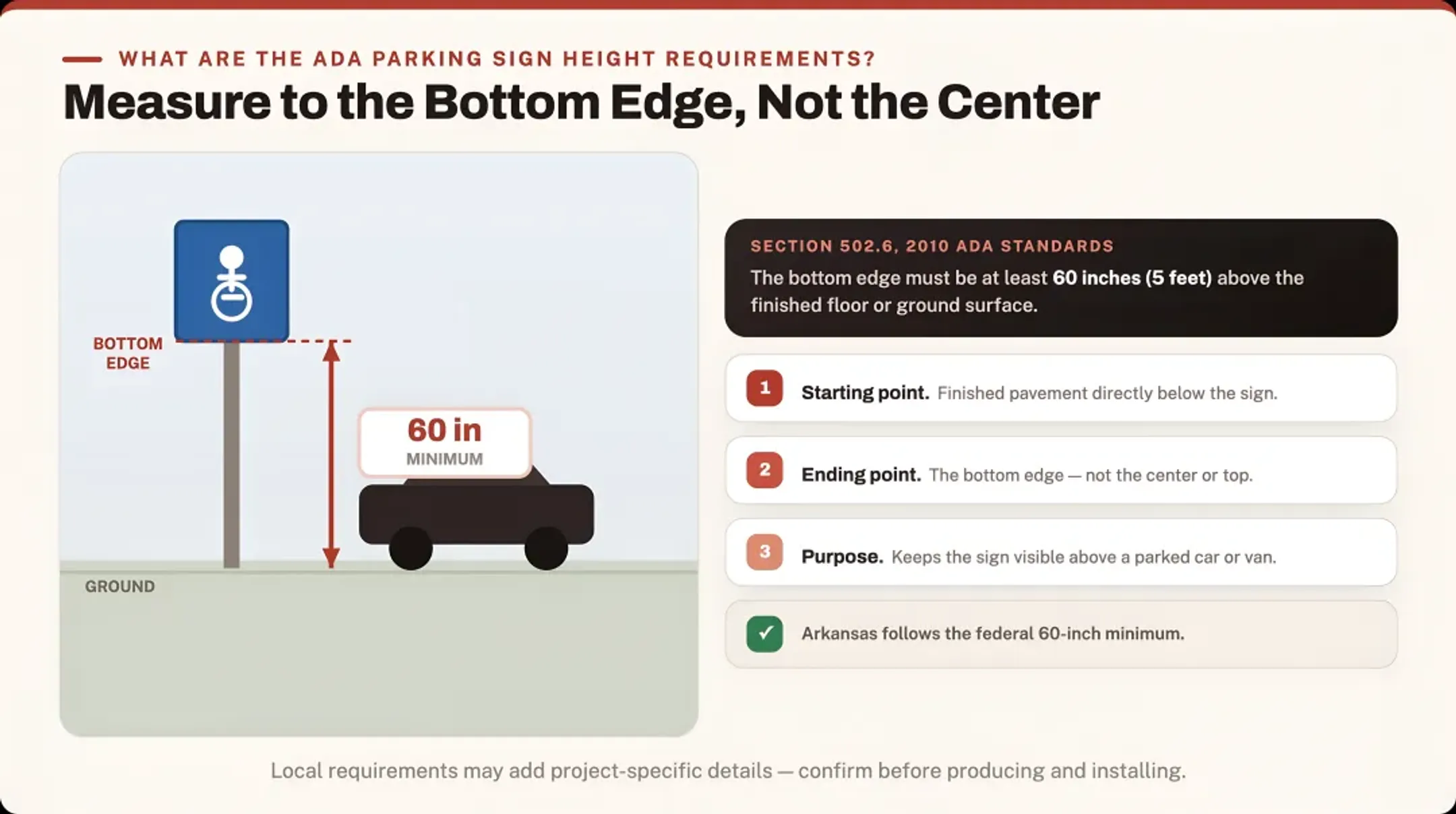

What Are the ADA Parking Sign Height Requirements?
ADA parking signs must be high enough to remain visible when a vehicle is parked in the accessible space. The federal rule establishes a clear minimum measurement, and Arkansas does not set a different statewide numeric height.
Height requirement: Under Section 502.6 of the 2010 ADA Standards, the bottom edge of the sign must be at least 60 inches, or 5 feet, above the finished floor or ground surface.
- Starting point: Measure from the finished pavement or ground directly below the sign.
- Ending point: Measure to the bottom edge of the sign, not its center or top.
- Simple example: When the bottom edge is positioned 5 feet above the finished pavement, it meets the federal minimum.
- Practical purpose: This height keeps the sign visible above a parked car or van, making the accessible space easier to identify.
Does Arkansas Use the Same Height Requirement?
Yes. Arkansas follows the federal 60-inch minimum. The Arkansas parking sign provisions in §27-15-315 address recognized symbols, wording, and sign formats visible at the driver's eye level, but they do not establish a different statewide numeric mounting height. Local requirements may add project-specific details, so you should confirm these before producing and installing the sign.
Height keeps the sign visible, but the sign also needs the correct accessibility information.

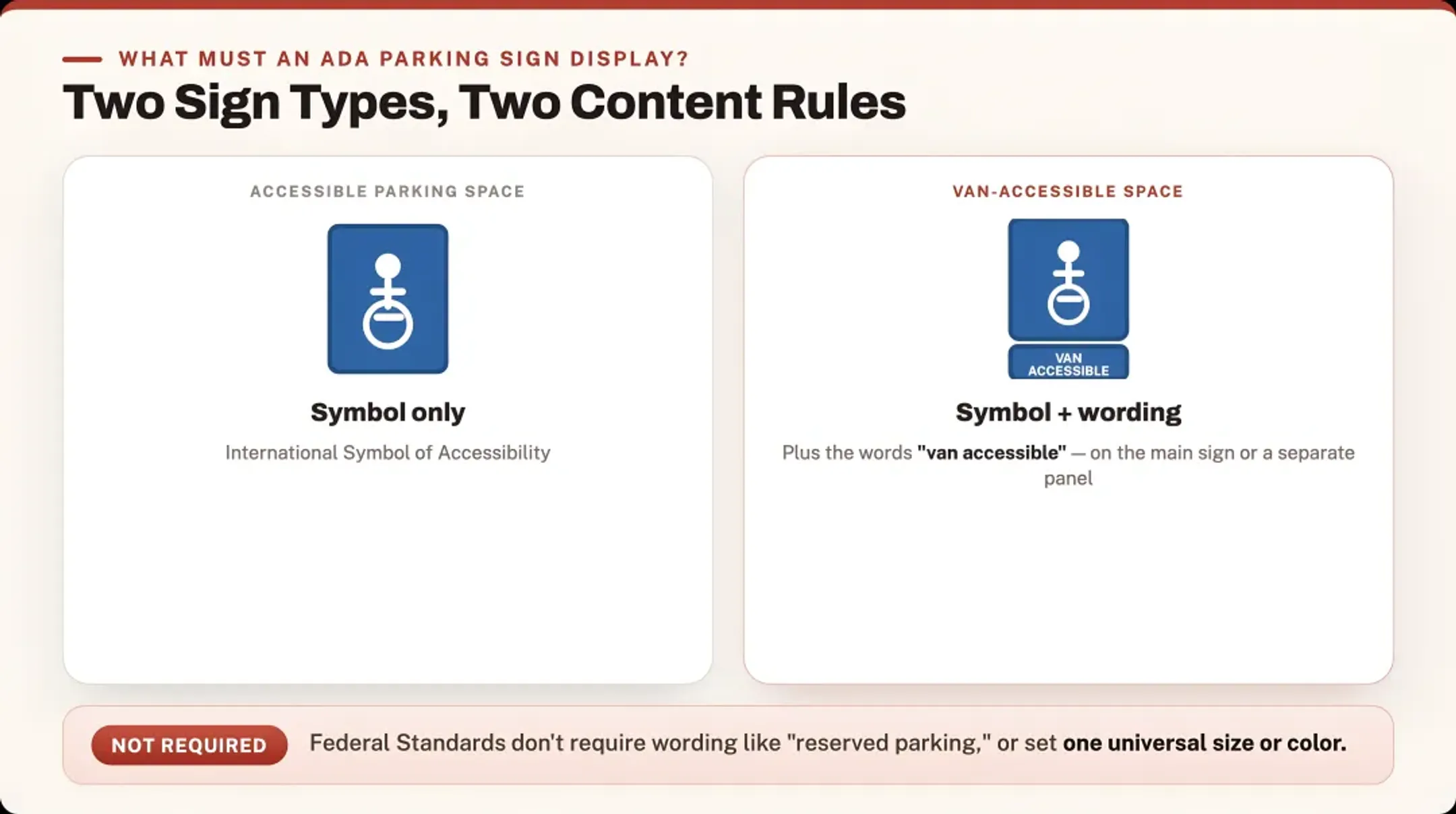

What Must an ADA Parking Sign Display?
An ADA parking sign should clearly identify the type of accessible space it serves. Federal requirements focus on the accessibility symbol and the additional wording needed for van-accessible parking.
| Sign type | Federal content |
|---|---|
| Accessible parking space | International Symbol of Accessibility |
| Van-accessible parking space | International Symbol of Accessibility plus the words "van accessible" |
For a van-accessible space, the words "van accessible" may appear on the main parking sign or on a separate panel mounted with it. The wording should remain easy to see and understand from the parking area.
The federal ADA Standards do not require additional wording such as "reserved parking." They also do not set one universal sign size or color. State and local codes may add requirements for sign dimensions, colors, wording, or approved sign formats.
For Arkansas properties, our team should confirm the applicable local requirements before the sign is produced and installed. This keeps the final sign aligned with both the federal baseline and any project-specific rules.
Need help confirming the correct accessibility symbol, van-accessible wording, and local sign requirements for your property? Call Seiz Sign Company at (501) 623-3181 to discuss your ADA parking sign project.

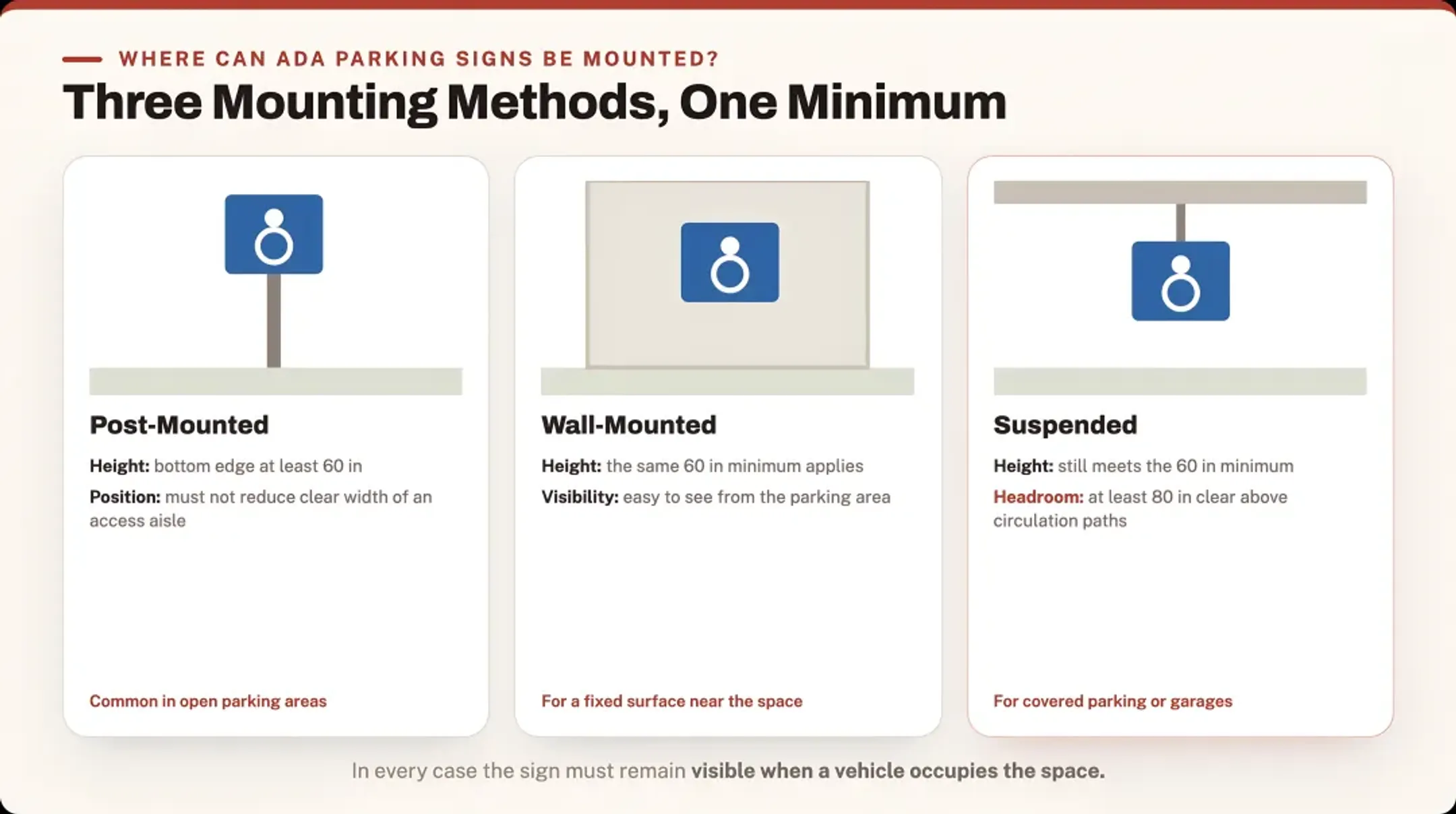

Where Can ADA Parking Signs Be Mounted?
ADA parking signs can be mounted on posts, walls, or suspended supports, depending on the parking layout. In every case, the bottom edge must remain at least 60 inches above the finished ground surface and visible when a vehicle occupies the space.
Post-Mounted Signs
Post mounting is common in open parking areas because it places the sign near the designated space.
- Height: The bottom edge must be at least 60 inches above the ground.
- Position: The post should not reduce the clear width of an access aisle or accessible route.
- Professional check: The installer confirms the best position for the layout.
Wall-Mounted Signs
Wall mounting may suit a fixed surface located close to the accessible space.
- Visibility: The sign should remain easy to see from the parking area.
- Height: The same 60-inch minimum applies.
- Professional check: The installer confirms that the wall location identifies the correct space.
Suspended Signs
Suspended mounting may be appropriate in covered parking areas or garages.
- Height: The sign must still meet the 60-inch minimum.
- Headroom: Signs above circulation paths require at least 80 inches of clear headroom.
- Professional check: The installer confirms visibility, clearance, and alignment with the designated space.
No matter how an ADA parking sign is mounted, the goal remains the same: it should be easy to see, correctly identify the accessible space, and meet all applicable ADA requirements. Choosing the right mounting method during the planning stage helps ensure the sign remains compliant and effective for years to come.
Need help selecting or installing ADA parking signs? Contact Seiz Sign Company at (501) 623-3181 or request a custom quote to get started.
Sign Size, Materials, and Placement
Selecting the right ADA parking sign involves more than meeting the minimum mounting height. Sign size, material, and placement all affect how well the sign performs over time and how easily drivers can identify accessible parking spaces.
Recommended Sign Dimensions
The ADA Standards establish the required mounting height but do not prescribe a standard sign size. However, industry-standard dimensions are typically:
- Accessible parking sign (R7-8): Minimum 12 inches x 18 inches
- Van-accessible supplemental plaque: Minimum 12 inches x 6 inches
Larger signs may be appropriate for parking lots with higher traffic volumes or longer viewing distances, where improved visibility is beneficial.
Material Considerations
Outdoor parking signs are exposed to sun, rain, wind, and changing temperatures year-round. Choosing durable materials helps maintain visibility and reduces the need for premature replacement.
Common industry specifications include:
- Aluminum at 0.063 - 0.080 inches thick or greater for long-term outdoor durability
- Reflective sheeting, such as Engineer Grade (ASTM Type I) or High Intensity Prismatic (ASTM Type III), to improve nighttime visibility
While these are widely accepted industry practices rather than ADA requirements, higher-quality materials generally provide better long-term performance in outdoor environments.
Placement Guidelines
Proper placement is just as important as selecting the correct sign. Two things you should keep in mind:
- Install the sign at the head of the designated parking space so drivers can identify the space before parking.
- Position the sign where it remains clearly visible and is not blocked by landscaping, walls, or other permanent obstructions.
Think of sign size, material, and placement as a single decision rather than three separate ones. A durable sign installed in the right location will continue identifying accessible parking spaces long after a lower-quality sign would need replacement.
Compliance Risks, Common Mistakes, and How to Avoid Them
Even small installation oversights can leave an ADA parking space out of compliance. Many of the most common issues are easy to prevent when the requirements are understood before installation.
The following mistakes are frequently identified during accessibility reviews:
- Mounting the sign too low, with the bottom edge less than 60 inches above the finished floor or ground surface
- Using signs with missing, damaged, or faded International Symbols of Accessibility (ISA)
- Failing to identify van-accessible spaces with the required "Van Accessible" designation
- Relying only on pavement markings without installing the required above-ground sign
- Providing too few accessible or van-accessible parking spaces for the size of the parking facility
Most of these issues can be avoided by verifying the applicable requirements before signs are ordered and installed. Reviewing the layout, mounting height, required sign content, and accessible parking count early in the project is often much easier - and less expensive - than making corrections after installation.

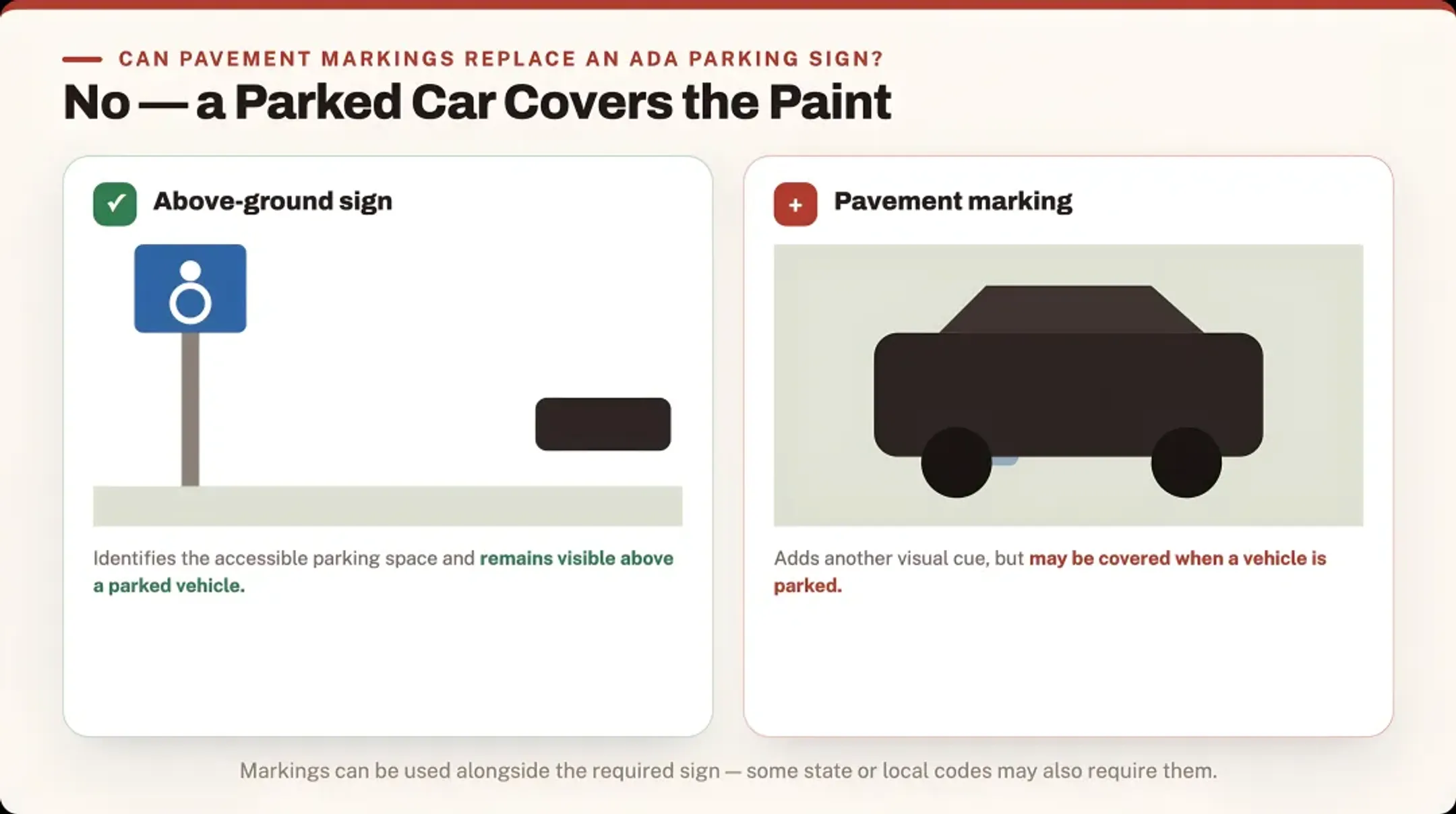

Can Pavement Markings Replace an ADA Parking Sign?
No. A pavement marking cannot replace the required above-ground ADA parking sign. A painted accessibility symbol may provide a helpful visual cue, but it may be covered when a vehicle is parked in the space. The mounted sign remains visible and continues identifying the accessible space while it is occupied.
| Identification method | Purpose |
|---|---|
| Above-ground sign | Identifies the accessible parking space and remains visible above a parked vehicle. |
| Pavement marking | Adds another clear visual cue for drivers approaching the space. |
Pavement markings can be used alongside the required sign. Some state or local codes may also require a painted symbol or other pavement markings in addition to the above-ground identification.
A professional installer should confirm which markings apply to the property and make sure the sign and pavement symbol work together clearly. This creates an accessible parking area that is easy for drivers to recognize from the moment they enter the lot.
Above-ground identification is the general rule, but the federal Standards provide two limited exceptions.

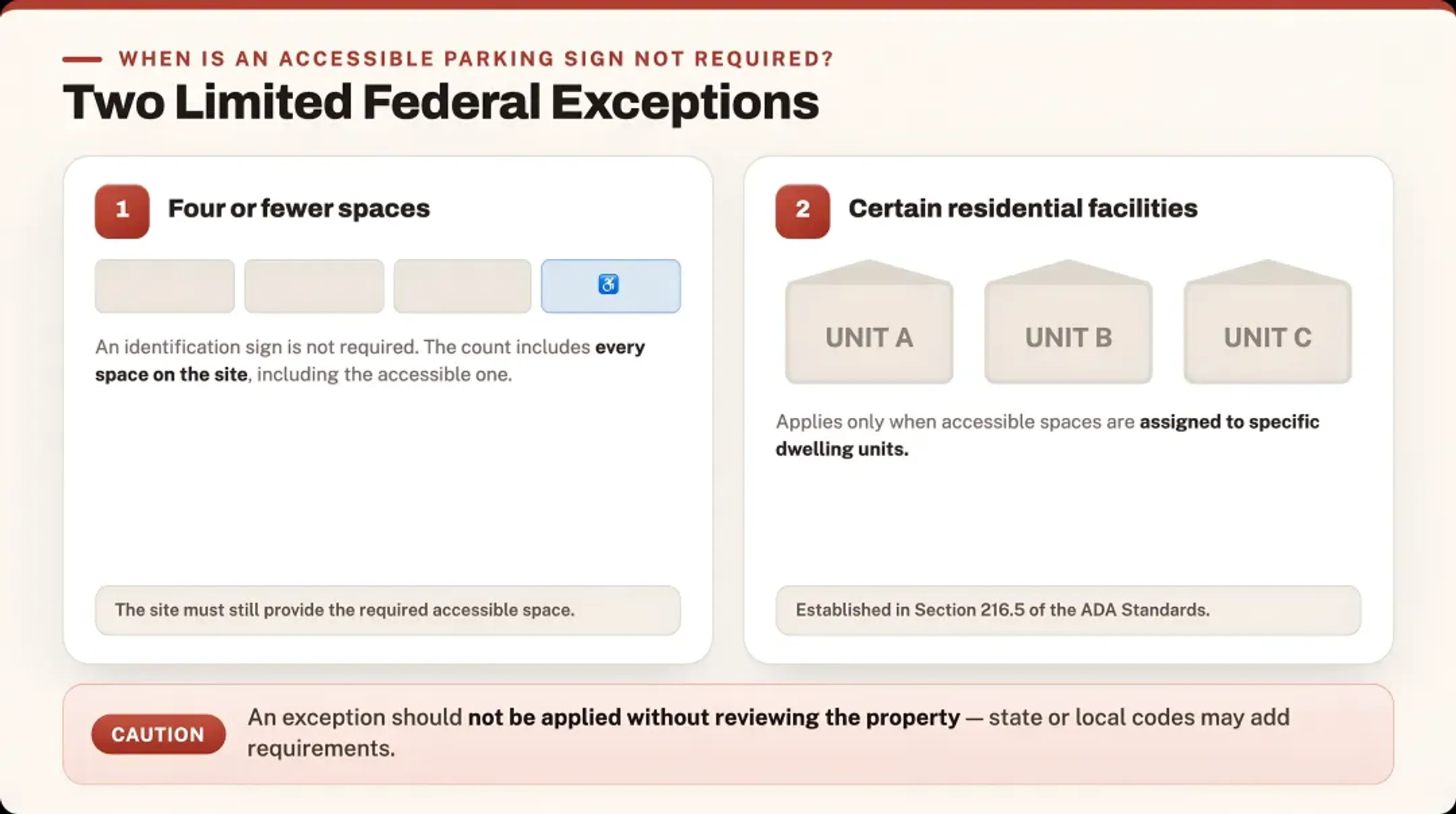

When Is an Accessible Parking Sign Not Required?
Federal ADA rules provide two limited exceptions to the accessible parking sign requirement. These exceptions apply only to sign identification. They do not remove other accessible parking requirements that may apply to the property.
| Property situation | Federal sign exception |
|---|---|
| Sites with four or fewer total parking spaces | An identification sign is not required. However, the site must still provide the required accessible parking space. |
| Certain residential facilities | An identification sign is not required when accessible parking spaces are assigned to specific residential dwelling units. |
These exceptions are established in Section 216.5 of the ADA Standards. The first exception counts every parking space on the site, including the accessible space. The second applies only when spaces at a residential facility are assigned to specific dwelling units.
An exception should not be applied without reviewing the property. State or local codes may add sign requirements, and the parking arrangement must match the conditions described in the federal Standards. A professional review can confirm which requirements apply before signs are produced and installed.

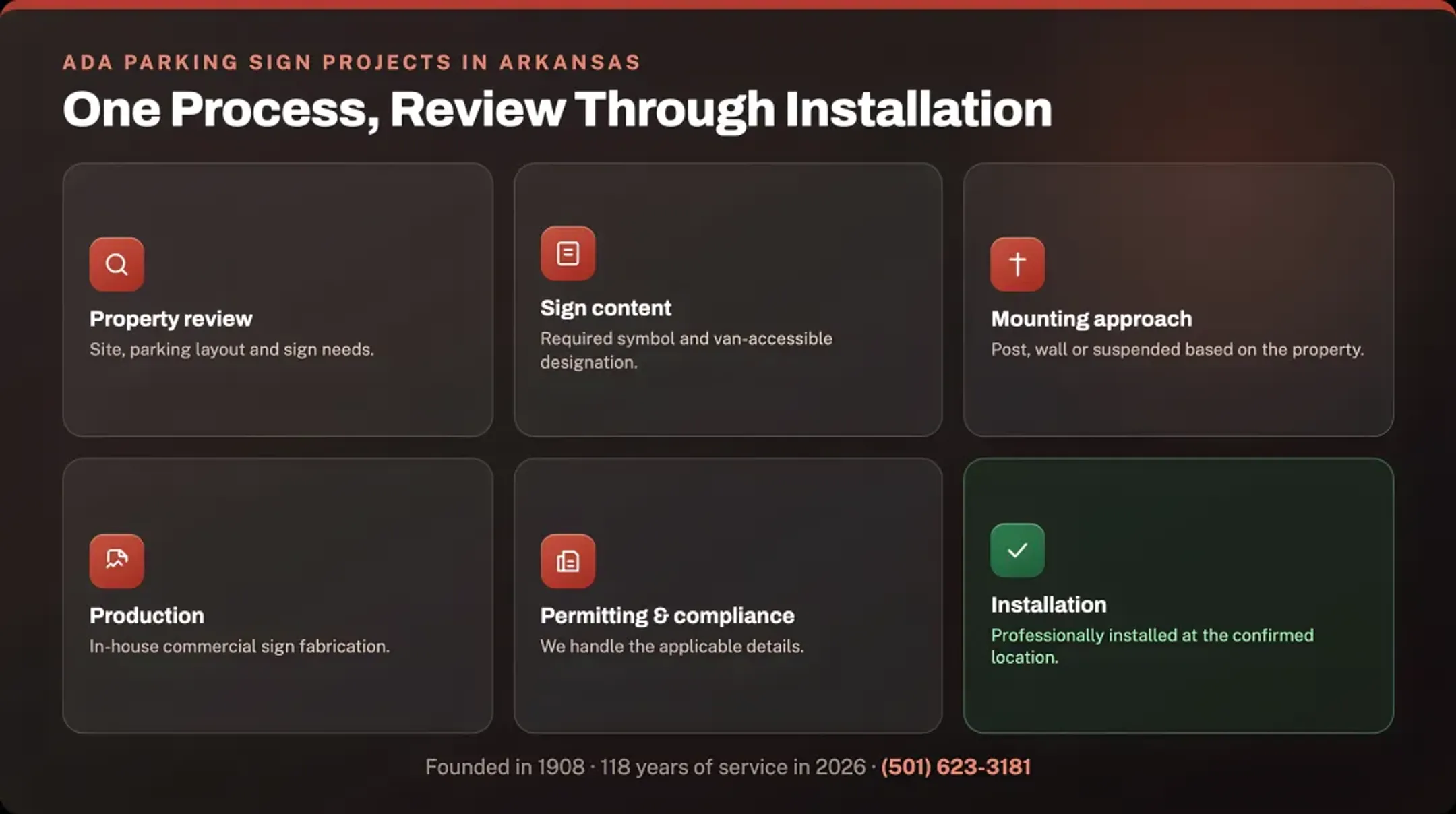

ADA Parking Sign Projects in Arkansas with Seiz Sign Company
Since 1908, Seiz Sign Company has provided signage solutions for businesses, schools, healthcare facilities, commercial properties, contractors, and organizations throughout Arkansas. As a full-service sign company, we handle everything from sign design and permitting to professional installation for a wide range of projects, including corporate and franchise signage installation for multi-location accounts.
Whether you're replacing an existing ADA parking sign or installing signage for a new parking area, our team can help you select the right sign for your project. We produce ADA parking signs for a variety of commercial properties and can discuss mounting options based on your installation needs.
If you're unsure which sign is appropriate or have questions about your project, we're happy to help. Contact Seiz Sign Company at (501) 623-3181 to discuss your ADA parking signage needs.
Frequently Asked Questions
Is the 60-Inch Height Measured to the Top or Bottom of the Sign?
The 60-inch measurement runs from the finished floor or ground surface to the bottom edge of the sign. It is not measured to the center or top. This mounting height helps the sign remain visible when a vehicle is parked in the accessible space.
Does Every Accessible Parking Space Need an Above-Ground Sign?
Accessible parking spaces generally require an above-ground identification sign. Federal rules provide two limited exceptions: sites with four or fewer total parking spaces and certain residential facilities where accessible spaces are assigned to specific dwelling units. Property details should be reviewed before applying either exception.
Does a Van-Accessible Space Need a Separate Sign?
A van-accessible space must display the International Symbol of Accessibility and the words "van accessible." The wording may appear on the main accessible parking sign or on a separate panel installed with it. The final arrangement should remain clear and easy to see.
Does the ADA Require Accessible Parking Signs to Be Blue?
The federal ADA Standards require the International Symbol of Accessibility but do not specify one universal sign color or size. State and local codes may add requirements for colors, dimensions, wording, or approved sign formats, so the applicable jurisdiction should be confirmed before production.
Are there any exceptions to the ADA parking sign requirement?
Two federal exceptions exist under §216.5. First, parking lots with four or fewer total spaces do not require signs, though accessible spaces are still required. Second, residential facilities where parking spaces are assigned to specific dwelling units are exempt from the sign requirement.
