What many business owners don't realize is that designing the sign is only the first step. Installing it is where the additional complexity begins. Behind every finished sign is structural mounting, electrical work, and permitting requirements that all have to come together correctly.
It's easy to focus on how the sign will look once it goes up. What matters just as much is everything behind it. The mounting system has to support the letters securely. The electrical work must meet the National Electrical Code (NEC) as adopted under city building codes. The installation needs to follow local permit requirements and the manufacturer's specifications.
When any of those steps are overlooked, problems tend to show up later. In this guide, we'll explain how channel letter sign installation works, how to choose the right mounting method, what permitting typically involves, when Arkansas requirements differ, and the electrical credentials needed to complete the job safely and correctly.
Key Takeaways
- Channel letter signs are complex systems, not just illuminated letters. Every component, from the letter construction to the electrical system, affects the sign's performance and lifespan.
- The right illumination style and mounting method depend on both your preference and your building. Front-lit, reverse-lit, and open-faced signs each have different installation requirements, while flush, raceway, and backer panel mounts suit different applications.
- Professional installation follows a planned process. Successful projects begin with site evaluation and permits before moving to layout, mounting, electrical work, and final testing.
- Early planning helps prevent delays and costly rework. Permits, landlord approvals, electrical requirements, and mounting decisions should all be addressed before fabrication begins.
- Working with an experienced sign company simplifies the project. Seiz Signs manages everything from permitting and fabrication to installation and long-term maintenance, giving you one trusted partner throughout the process.

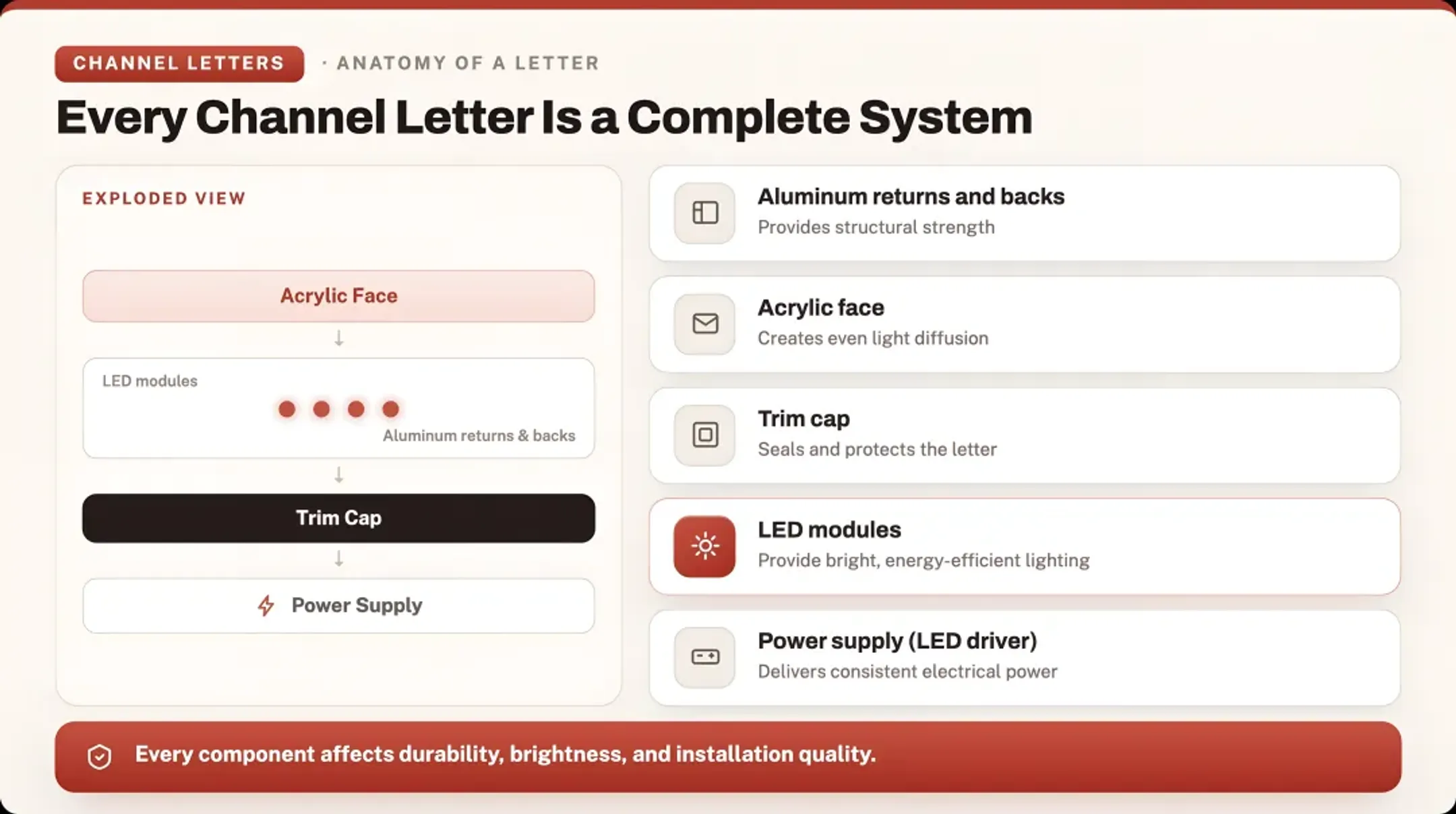

How a Channel Letter Sign Is Built (and Why Installation Is More Complex Than It Looks)
A channel letter sign isn't flat like a printed sign. Every letter is its own hollow, three-dimensional structure, built to stand proud of the building while housing its own illumination. That construction is what gives channel letters their clean, premium appearance, but it's also why installing them requires far more precision than simply mounting a sign.
Each letter functions as a complete system. Every component has a specific job, and if one part is poorly made or installed incorrectly, it can affect the performance and lifespan of the entire sign.
| Component | Purpose |
|---|---|
| Aluminum return and backs | Forms the sidewall of the letter and provides its depth. Most channel letters use 0.040–0.063-inch aluminum for strength, corrosion resistance, and durability. Backs are often .050 aluminum or Aluminum Composite Material (ACM). |
| Acrylic or polycarbonate face | Allows the transmission of light through the front of the letter. Acrylic is the standard choice because it offers excellent light diffusion and weather resistance, while polycarbonate is used when greater impact resistance is needed. Acrylic also has a wide range of standard colors available. |
| Trim cap | Seals the joint between the face and the return while creating a clean finished edge. UV-stable trim caps help prevent cracking, discoloration, and premature deterioration. |
| LED modules | Provide consistent, energy-efficient illumination throughout each letter. Proper spacing is essential to avoid bright spots or shadows. |
| Power supply (LED driver) | Converts and regulates power for the LED modules. It's typically installed inside the raceway or concealed behind the wall, depending on the mounting method. |
Because these components work together, installation isn't just about attaching letters to a building. The right materials have to be paired with the correct electrical components, and everything must be assembled and mounted properly.
A return that's too shallow, a low-quality trim cap, or a mismatched power supply can all shorten the life of the sign or affect the lighting and appearance of the letters. That's one of the biggest differences between a professional installation and an amateur one. Experienced installers treat channel letters as an integrated system, not a collection of individual parts.

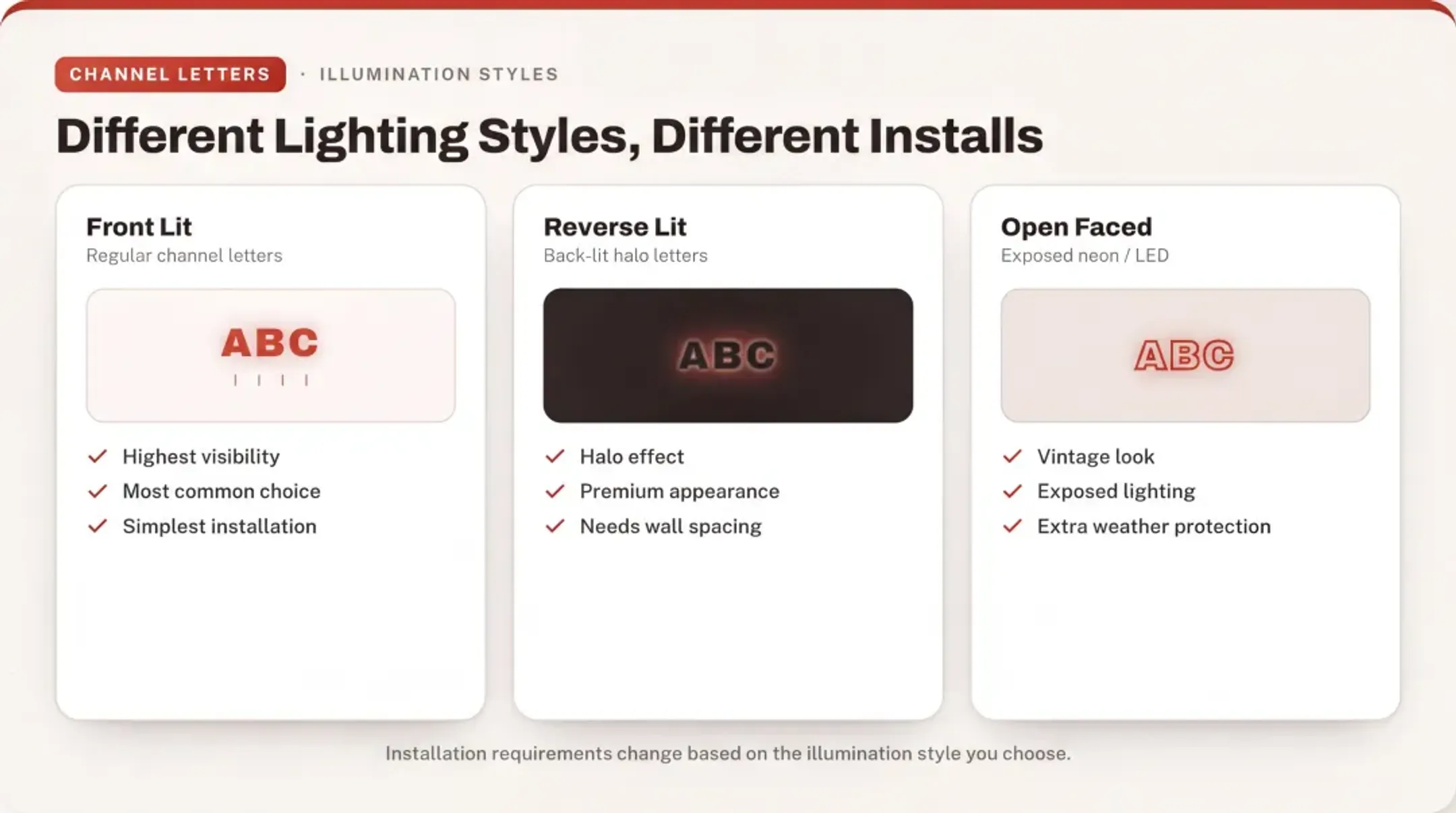

Illumination Types and How They Shape Your Installation
It's easy to choose a channel letter style based on appearance alone. After all, that's what you'll notice first in a rendering. The problem is that the rendering doesn't show what's happening behind the letters.
Each illumination style has different installation requirements. Some need more wall clearance. Others require additional wiring or different lighting components. Choosing the wrong style doesn't always become a problem until fabrication or installation is underway, when making changes becomes far more expensive.
Understanding how each type works makes it easier to choose the right sign for both your business and your building.
Regular (Front-Lit) Channel Letters
Regular, or front-lit, channel letters are the most common choice for commercial buildings. LED modules sit behind an acrylic face and illuminate the front of each letter, creating a bright, highly visible sign that's easy to read both day and night.
Although the installation is relatively straightforward, achieving even illumination requires careful planning. LED modules must be positioned to match the size, stroke and shape of each letter. If the spacing isn't calculated correctly, bright spots and shadows become visible once the sign is illuminated.
Reverse (Back-Lit) Channel Letters
Reverse, or back-lit, channel letters create a softer, more architectural look. Instead of shining through the face, the lighting projects onto the wall behind each letter, producing the halo effect that gives these signs their distinctive appearance.
The quality of that halo depends on the installation. Most reverse-lit letters require approximately 1½ inches of clearance between the back of the letter and the mounting surface. Too little spacing creates an uneven glow, while too much spacing reduces definition and makes the light appear overly diffused.
Open Faced Channel Letters
Open faced channel letters leave the front of each letter exposed so the lighting source remains visible. Traditionally these signs used neon tubing, although modern versions may also use LED lighting to achieve a similar effect.
Because the lighting is exposed rather than enclosed behind an acrylic face, installation requires additional attention to component placement, electrical connections, and weather protection for outdoor applications. When installed correctly, open faced letters create one of the most distinctive and recognizable sign styles available.
Channel Letter Sign Installation Guide 2026
Installing channel letters isn't a typical DIY project. Unlike many exterior signs, channel letters combine structural mounting, electrical work, and permitting requirements into a single installation. A mistake in any one of those areas can affect the sign's appearance, performance, and long-term reliability.

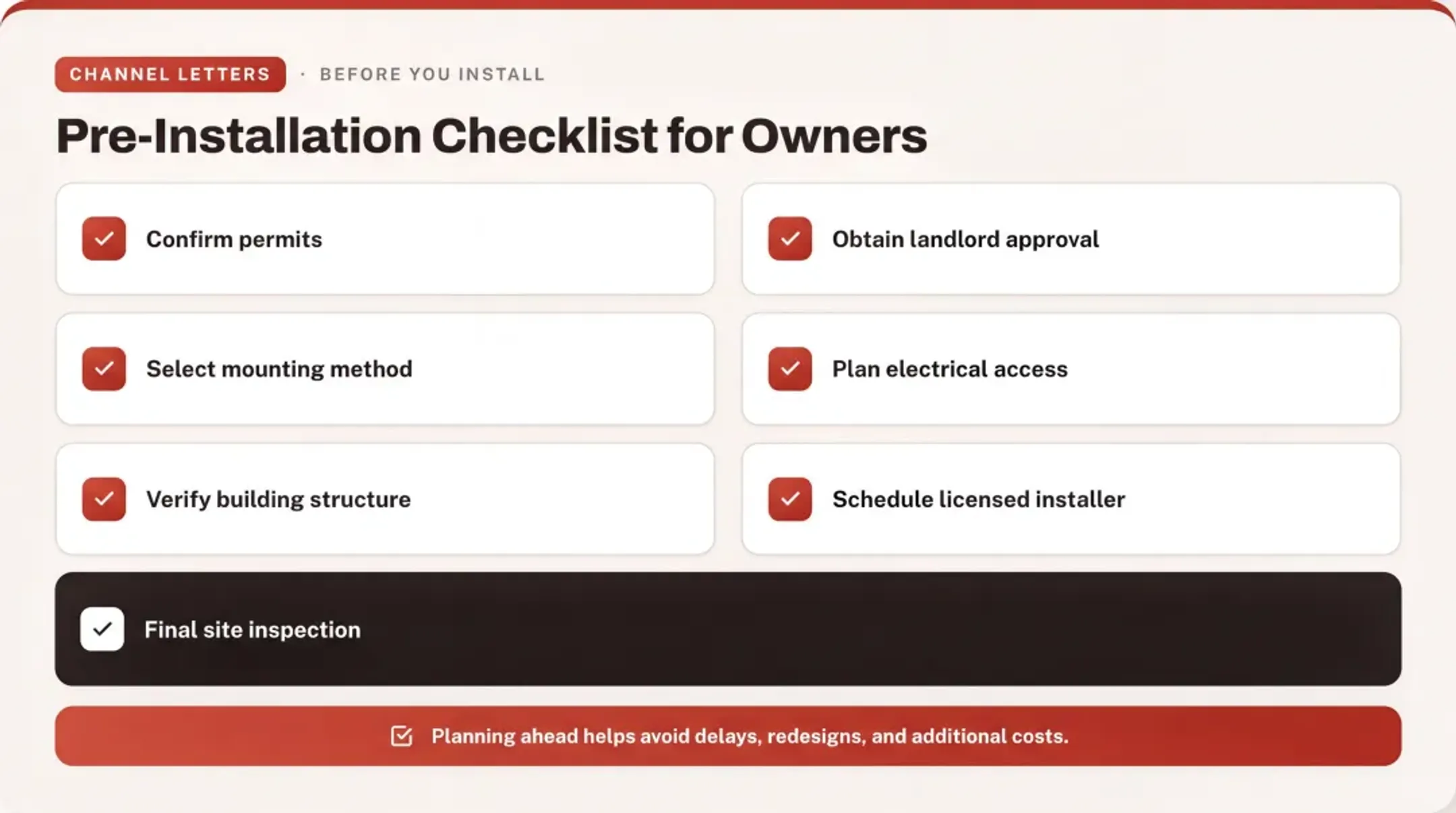

Before installation begins, professionals typically confirm:
- Permits and approvals are in place, including any municipal or landlord requirements.
- The mounting surface can safely support the sign.
- Electrical access has been planned for the chosen mounting method.
- The appropriate mounting system has been selected.
- Safety measures and equipment are ready before work begins.
Once those requirements are met, the installation goes as follows:
1. Evaluating the Building Before Installation Begins
Long before the first hole is drilled, the building needs to be evaluated.
Not every façade can be treated the same way. Brick, concrete, EIFS, metal panels, and wood framing all respond differently to anchors, fasteners, and electrical penetrations. A mounting system that works perfectly on masonry may not provide adequate support on composite panels, while an older brick façade may require additional reinforcement before it can safely carry the sign.
Installers also evaluate practical considerations that aren't obvious from a rendering.
They look at questions like:
- Where will the power supply be located?
- Can wiring be concealed inside the wall?
- Is future maintenance easily accessible?
- Will the building allow a flush mount, or is a raceway the better choice?
- Does the sign need to withstand higher wind exposure because of its location?
Answering those questions early helps prevent expensive design changes once fabrication has already begun.
2. Choosing the Mounting Method
The mounting method determines far more than how the letters attach to the building. It affects electrical routing, maintenance access, wall penetrations, and even the finished appearance of the sign.
Professionals generally select from three installation methods.
| Mounting Method | How It Works | Why It's Chosen |
|---|---|---|
| Flush (Direct) Mount | Each letter is mounted individually with concealed wiring passing through the wall. | Creates the cleanest architectural appearance but requires accessible electrical space behind the façade. |
| Raceway Mount | Letters mount to an aluminum raceway that houses the wiring and power supply. | Simplifies installation and future servicing while minimizing wall penetrations. However, future servicing is on the exterior of the building and may require an aerial lift. |
| Backer Panel Mount | Letters are attached to a finished panel that is then mounted to the building. | Works well on uneven surfaces, larger sign packages, or buildings where a defined sign field is preferred. |
There's rarely a universally "best" mounting method. The right choice depends on the building, the electrical layout, long-term maintenance needs, and the desired appearance once the installation is complete.
3. Preparing the Layout Before the First Hole Is Drilled
One of the easiest ways to ruin an otherwise well-built sign is to rush the layout.
Professional installers don't measure every letter individually on-site. Instead, they use a full-size installation template supplied during fabrication to transfer the exact design onto the building. Every anchor location, wiring penetration, and letter position is marked before drilling begins.
This stage is also when installers confirm the details people notice immediately after installation:
- Is the sign perfectly level?
- Is it centered on the façade?
- Is the spacing identical to the approved design?
- Will architectural features such as windows, trim, or brick courses make the sign appear visually off-center?
Sometimes a sign that's mathematically centered doesn't look centered because of the building itself. Experienced installers account for these visual factors before committing to permanent mounting locations.
4. Mounting the Sign and Integrating the Electrical System
Once the layout has been verified, the installation moves to mounting.
Depending on the chosen method, installers secure either the raceway, backer panel, or individual letters using hardware matched to the building material. The goal isn't simply to keep the sign attached today, but to ensure it remains secure after years of wind, rain, temperature changes, and normal building movement.
Electrical integration happens alongside mounting rather than after it.
LED modules are connected to the appropriately sized power supply, wiring is protected from moisture and physical damage, and cable routing is organized so future maintenance can be completed without dismantling the entire sign. Proper wire management also improves airflow inside the letters, reducing heat buildup that can shorten LED lifespan.
For illuminated signs, the final electrical connection should always be completed by a qualified sign electrician. In Arkansas, illuminated sign installations must be performed by or under the supervision of a Licensed Sign Electrician.
5. Testing Before the Sign Goes Into Service
A professional installation doesn't end when the last letter is mounted.
Before the sign is considered complete, installers perform a final inspection to verify both appearance and performance.
They typically confirm that:
- Every letter sits level with consistent spacing.
- Mounting hardware is fully secured.
- Raceway or backer panels sit flush against the building.
- Wall penetrations have been properly sealed against moisture.
- Wiring is concealed and routed correctly.
- Every illuminated letter produces consistent brightness without flickering, dark sections, or visible hot spots.
This final inspection is often the difference between a sign that simply looks good on installation day and one that continues performing reliably for years with minimal maintenance.
What Business Owners Often Overlook Before Installing Channel Letters
By the time channel letters are ready to install, most of the important decisions have already been made. The sign has been designed, approved, and fabricated. That's why overlooking a detail at this stage can lead to delays, additional costs, or unnecessary rework.
Here are a few things businesses commonly forget before installation begins.
Permits Should Come Before Fabrication
One of the most common mistakes is assuming permits can be handled after the sign has been ordered. In reality, permit requirements often determine what can be installed in the first place.
Sign regulations are set by local authorities, so requirements for size, illumination, placement, and mounting can vary from one city to another. If a sign is fabricated before those requirements are confirmed, changes may be needed before installation can move forward.
At Seiz Signs, we handle the permitting process from start to finish before fabrication begins, helping ensure your sign complies with local requirements from day one.
Don't Choose a Mounting Method Too Early
A raceway, direct mount, or backer panel shouldn't be selected based on appearance alone. The right option depends on the building, available electrical access, future maintenance needs, the condition of the mounting surface and landlord requirements.
Evaluating these factors early helps avoid unnecessary design changes later in the project.
Electrical Work Has Its Own Requirements
Many people assume any electrician can complete a channel letter installation. That's not always the case.
For illuminated signs, the final electrical connection must be completed by, or under the supervision of, a Licensed Sign Electrician or master electrician. In Arkansas, this is a legal requirement for code compliance.
Our team includes Licensed Sign Electricians, allowing us to manage both the sign installation and electrical work without relying on outside contractors.
Landlord or Property Approvals May Also Be Required
If your business operates in a leased space, shopping center, or managed commercial property, approval from the property owner or management company may be required before installation begins.
These approvals are separate from municipal permits and often include their own signage guidelines covering size, placement, colors, or illumination.
Because we manage installations from permitting through final installation, we help coordinate these approvals as part of the project whenever they're required.
How Seiz Signs Can Help with Channel Letter Installation
Choosing the right channel letter sign is only part of the process. A successful installation depends on careful planning, quality fabrication, code-compliant electrical work, and an experienced team that can bring everything together seamlessly.
For more than 118 years, businesses across Arkansas have trusted the Seiz Sign Company to deliver commercial signage that's built to last. Over the years, we've installed channel letters for a wide range of industries. That experience has given us a deep understanding of what it takes to deliver installations that are not only visually striking but also safe, durable, and compliant with local requirements.
When you work with us, you don't have to coordinate between multiple vendors or figure out who handles the next step. We manage the entire process, from site surveys and permit applications to professional installation.
Our relationship doesn't end once your sign is installed. Whether you need routine maintenance, repairs, lighting upgrades, or additional signage as your business grows, we're here to support you long after installation day.
Contact Seiz Signs today to get a quote for your channel letter sign installation, and let us help you create a sign that's built to perform for years to come.
Frequently Asked Questions
How are channel letters installed?
Every channel letter breaks down into six core parts: The aluminum return (the sidewall giving it depth), The aluminum or ACM back, The acrylic or polycarbonate face (the front panel), The trim cap (which seals the seam), Internal LED modules, The power supply that regulates voltage to those LEDs. Skimping on any one of these components--especially the trim cap or power supply--is usually what shows up as a maintenance problem within a year or two.
What are the parts of a channel letter sign?
Every channel letter breaks down into five core parts: the aluminum return (the sidewall giving it depth), the acrylic or polycarbonate face (the front panel), the trim cap (which seals the seam), internal LED modules, and the power supply that regulates voltage to those LEDs. Skimping on any one of these (especially the trim cap or power supply) is usually what shows up as a maintenance problem within a year or two.
Do I need a permit to install a channel letter sign?
Yes. Most municipalities require a permit covering sign size, illumination type, and mounting method, and your landlord may require separate written approval on top of that. Seiz Signs handles the permit research, application, and inspection scheduling for you, so it's one less thing on your plate. However, if your business is located outside the city limits, then a permit is not always required under county ordinances. Check with us.
How much does a channel letter sign cost?
Cost depends on letter count, size, mounting method, materials, illumination type, and your local permit and labor fees, there's no flat rate that applies across the board. What matters more than the upfront number is material quality, since a sign built with UV-stable acrylic and corrosion-resistant hardware lasts years longer than one built to save a few dollars now. Treat it as a long-term investment rather than a one-time expense, and get a quote based on your actual building rather than a generic estimate.
How long does channel letter sign installation take?
A standard install usually takes one to two days once the crew is on site. Larger signs, difficult substrates, multi-story buildings, or anything requiring traffic management can stretch that to a week or more. The bigger variable most people don't plan for is permitting lead time, which runs on a completely separate clock from the physical install and varies by municipality, so build that into your timeline early, not as an afterthought.
What is the difference between a channel letter sign and a box sign?
Channel letters are individually built, three-dimensional letters that give you a dimensional, architectural look, each one is its own piece with its own depth and wiring. A box sign, sometimes called a cabinet sign, is one single enclosed box with a translucent face panel covering the whole thing.
